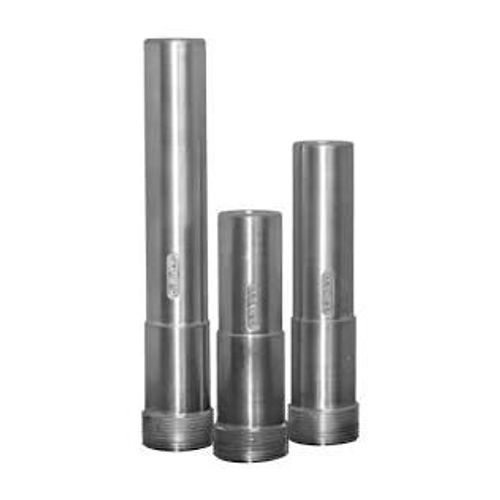

TUNGSTEN-CARBIDE-LINED LONG-VENTURI STYLE | CXD-7 7/16” Orifice 254 cfm
$402.00
CLEMCO | TUNGSTEN-CARBIDE-LINED LONG-VENTURI STYLE | CXD-7 7/16” Orifice 254 cfm
Clemco Part #23461 (Model CXD-7) is a high-production, long-venturi blast nozzle engineered to maximize abrasive particle velocity and pattern coverage over large surface areas.
- Model Series: CXD-7 (Long Venturi)
- Orifice Size: 7/16" (#7)
- Liner Material: Premium Tungsten Carbide (offers an operational service life of approximately ~300 hours with standard expendable abrasives like mineral slag or garnet)
- Jacket Material: Heavy-duty aluminum jacket providing high impact protection against drops and external wear
- Thread Type: 1-1/4" Contractor Threads (1-1/4" NPSM)
- Air Consumption: 254 CFM at 100 PSI (requires a heavy compressor rated for 250+ CFM to maintain optimal blasting velocity)
- Entry Size: 1" ID wide entry
- Performance Advantage: The long-venturi internal taper accelerates abrasive particles up to 450 mph—delivering up to 40% higher production rates compared to straight-bore nozzles.
