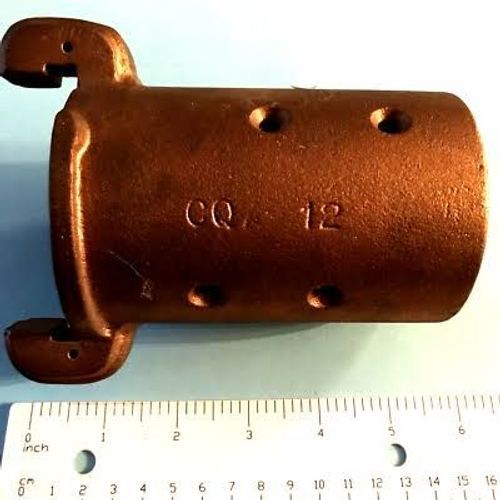

BRASS QUICK COUPLINGS | CQ-12 for 2-3/8” OD hose

The Clemco CQ-12 Brass Quick Coupling (Part #00567) is a premium full-port coupling designed for heavy-duty 1-1/2-inch inner diameter blast hoses with a 2-3/8-inch outer diameter (OD).Cast from durable industrial brass, the CQ-12 features an enlarged internal throat profile to eliminate airflow restriction and pressure drop across high-volume blasting operations. It provides superior wear life and impact resistance compared to aluminum fittings. (Note: Because of its full-port design and larger flange dimension, the CQ-12 will only mate with matching full-port fittings such as another CQ-12 or aluminum CQA-12, and will not interconnect with standard couplings like the CQ-4).It includes mounting screws, a safety lock pin, and an internal CQ12G gasket (Part #00852).

CLEMCO BRASS QUICK COUPLINGS | CQ-12 for 2-3/8” OD hose

Part Number: 00567

(CQA couplings include gasket, screws, and lock pin.)

It will NOT interconnect with any other quick couplings.

Part Breakdown:

(CQG gasket 00852)

(Lock Pins for Aluminum and Brass Couplings 11203)

(Screws for Aluminum and Brass Coupling 21581)
