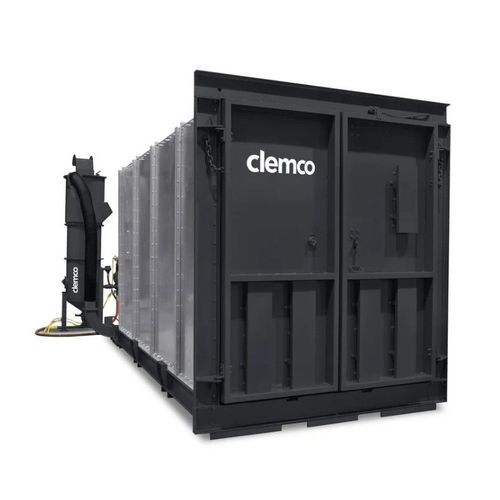

BELT CONVEYOR RECOVERY SYSTEMS (MECHANICAL)
CLEMCO | BELT CONVEYOR RECOVERY SYSTEMS (MECHANICAL)
Part number: 28201
Belt Conveyor Systems include:
Belt conveyor 12” wide unit with metering hoppers, 250 lbs per square foot grating, bucket elevator assembly (4” wide belt) (1.5 HP motor) with integrated underspeed monitor, air-wash abrasive cleaner, RPH dust collector (for abrasive cleaner ventilation only), 50 cu ft storage hopper, 6 cu ft industrial blast machine package (see full description on page 7 in this section), and NEMA-12 electrical control panel assembly. Includes one-day start up supervision including travel expenses within the continental USA. Start up must be scheduled within one year of purchase.
Available configurations:
10 ft L sweep-in belt recovery system with AWAC Orientation & Electrical Supply:
• Right Hand 230v 3 ph 60 hz | Part number: 28201
• Right Hand 460v 3 ph 60 hz | Part number: 28203
• Left Hand 230v 3 ph 60 hz | Part number: 28200
• Left Hand 460v 3 ph 60 hz | Part number: 28202
20 ft L sweep-in belt recovery system with AWAC Orientation & Electrical Supply:
• Right Hand 230v 3 ph 60 hz | Part number: 27970
• Right Hand 460v 3 ph 60 hz | Part number: 27402
• Left Hand 230v 3 ph 60 hz | Part number: 27971
• Left Hand 460v 3 ph 60 hz | Part number: 27972
